Feature: | Lightweight, High Strength, Low Cost | Overall Thickness: | 6mm,8mm,10mm,12mm,15mm,18mm,20mm, Etc. |
---|---|---|---|
Top Aluminium Skin: | 0.5mm, 0.7mm, 0.8mm, 1.0mm. Etc | Core Material: | Aluminum Honeycomb Core |
Perforation: | Diameter2.5mm, 3.0mm, Etc. | Surface Treatment: | PE/PVDF/ Mill Finish/Anodised |
Max. Size: | 2000x10000mm | Color: | Ral Series Colors, Wood/Marble/Granite Colors |
High Light: | Walls Perforated Aluminum Composite Panel,10mm Perforated Aluminum Composite Panel |

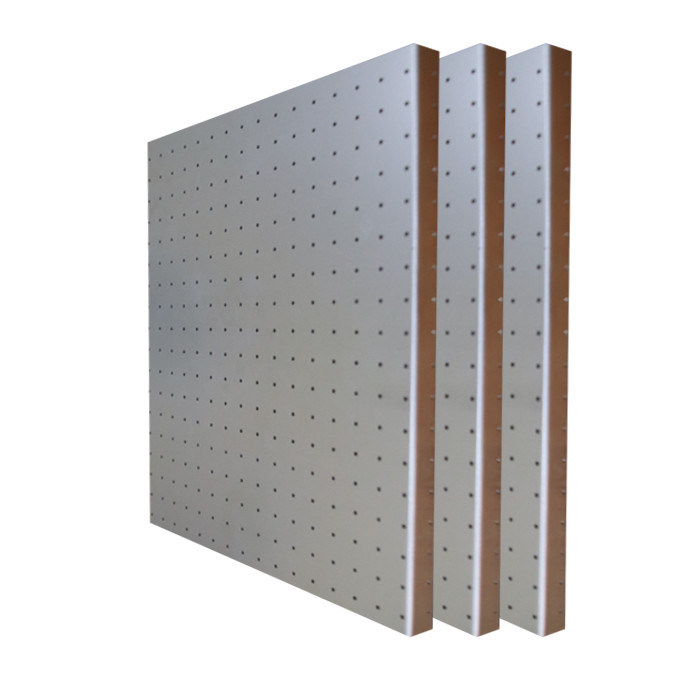

Composite Panels Honeycomb Perforated Aluminum Panels for Walls
Aluminum honeycomb acoustic panel is made of perforated aluminum sheets, sound-absorbing non-woven fabrics and aluminum honeycomb structure core by sandwich lamination, it's a very popular sound insulation material for architectural applications, especially suitable for ceiling systems, walls and partitions.
Brief Introduction
Material | Aluminum Alloy (3003/5052, etc.) |
Regular Size (W*L*T) | 1,220*2,440/3,000*6 mm |
Max. Size(W*L*T) | 2,000*10,000*200 mm |
Regular Thickness | 10/12/15/20/25 mm |
Available Thickness | 5-300 mm |
Regular Surface Treatment | PVDF,PE,Powder Coating, Anodized, etc. |
Perforation | Yes (customized) |
Applications | Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc. |
Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
OEM | Available |
Suggestion: | |
1. For interior wall (PE coating): range from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm) | |
2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: from 1.0mm to 1.5mm; bottom plate: from 0.7mm to 1.0mm) |
Features
Data
Technical Data of Honeycomb Panels | ||
Thickness | 20mm | 25mm |
Facing Aluminum skin | 1.0mm | 1.0mm |
Backing Aluminum skin | 1.0mm | 1.0mm |
Weight (kg/m2) | 7.4 | 7.8 |
Mechanics function of complex planking and surface planking | ||
Inertia Rectangle I(cm4/m) | 19.85 | 31.67 |
Measurement of cutting W(cm3/m) | 19 | 24 |
Hardness of complex planking E.I(KN Cm2/m) | 139000 | 221700 |
Changeable measurement(N/mm2) | 70000 | 70000 |
Tensile strength of surface planking (N/mm2) | Rm≥220 | Rm≥220 |
0.2%Power of bending (N/mm2) | Rp0.2≥130 | Rp0.2≥130 |
(EN485-2:1194) Extending rate | A50≥8 | A50≥8 |
Surface decoration layer | PVDF | |
Luminosity (original data) | 30-40% | 30-40% |
Hardness of pencil | HB-F | HB-F |
Honeycomb Specification | ||
Size of honeycomb | 1/4(6.3mm) | 1/4(6.3mm) |
Aluminum honeycomb density | 80kg/m3 | 80kg/m3 |
Strength of pressure-resistant(MIL-STD-401) | 4N/mm2 | 4N/mm² |
Function of Acoustics | ||
Data of sound absorption | 0.05 | 0.05 |
Indicator of sound seperating (ISO717-RW) | 23 | 25 |
Function of Heating | ||
Data of heating guiding(w/m2k) | 2.25 | 2.7 |
Data of heating preventing R(1/m)(m2k/w) | 0.0089 | 0.0093 |
Data of heating passing U(k)(w/m2k) | 5.59 | 5.575 |
Application
Packing&Loading
There will be protective film on each panel and seaworthy pallet.
