Product Details:
|
| Type: | Composite Truck Body | Size: | Per Custom Spec |
|---|---|---|---|
| Color: | White Is Popular ,Other Color Are Also Available | Material: | FRP Insulated Panel Or Aluminum Composite Panel |
| Adhesive: | Polyuthane Glue | Core: | XPS Insulation Foam |
| Length: | Upto 12m | Temperature: | -20 To 80℃ |
| High Light: | Fiberglass Reinforced Plywood Composite Truck Body,FRP Composite Truck Body |
||

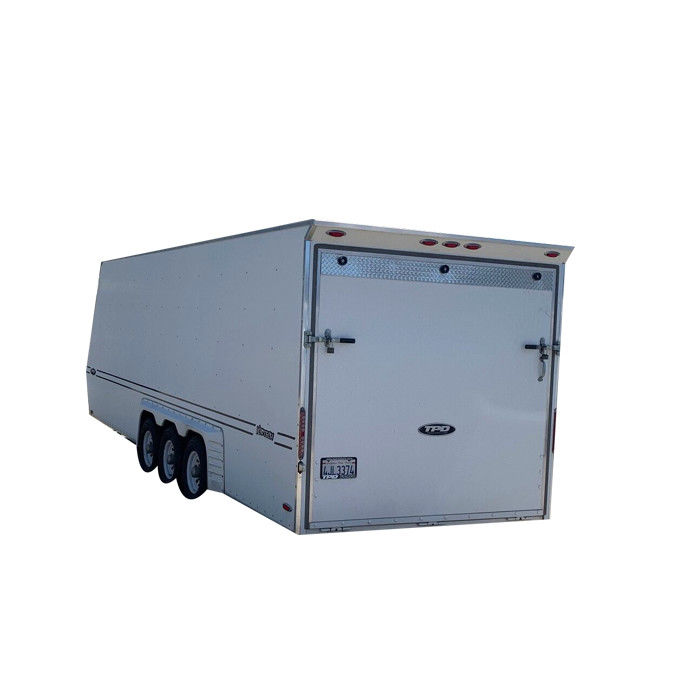

Fiberglass Reinforced Plywood (FRP) Composite Truck Body Panel For Dry FReight
FRP Plywood is made with Fiberglass refinfocerd laminates each side with plywood core inside.
“Fiberglass Reinforced Plywood” is as tough woven fiberglass-gelcoat exterior with ridged ½” plywood core. Engineered to increase cargo room width, while maintaining structural strength.
|
Standard FRP or aluminum composite panels (10 - 150 mm thick) without cutting, padding or reinforcements. Corner profiles, adhesive and primer will be provided |
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with reinforcements. Corner profiles, adhesive and primer will be provided
|
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with built-in doors, windows, hatches, reinforcements or an integrated frame in the floor panel. Corner |
|
| Windows and doors are available upon request | |
| Notes | Normally truck body are supplied in CKD format to save |
Our Composite Truck Bodies are engineered and constructed with premium materials sourced. Each component
is carefully selected to guarantee a trouble free long life.We deliver flat packed per shipping container to your doorstep.
| Product |
Core (mm) |
Inside Sheet (mm) |
Outside Sheet (mm) |
Total Thickness (mm) |
Weight (Kg / Sqm) |
| Dry Goods | 25 | 2.4 | 2.4 | 29.8 | 8.46 |
| Dry Goods | 35 | 2.4 | 2.4 | 39.8 | 8.86 |
| Frozen Goods | 45 | 2.4 | 2.4 | 49.8 | 9.26 |
| Frozen Goods | 75 | 2.4 | 2.4 | 79.8 | 10.46 |
| Deep Frozen Goods | 100 | 2.4 | 2.4 | 104.8 | 11.26 |
Application
WDF Factory View
