Place of Origin:
Foshan,China
Brand Name:
WDF
Certification:
ISO
Model Number:
WDF-TBK
Contact Us

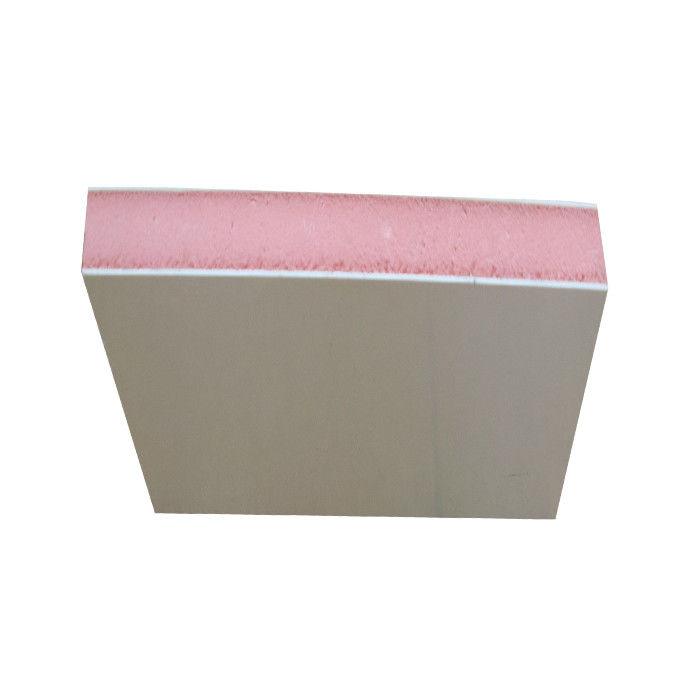

FRP Composite Truck Body made with Fiberglass XPS Foam Sandwich Panel
Foshan WDF specialises in producing high quality composite Truck body made of PU and XPS foam and FRP or aluminum laminates.
FRP / fiberglass sandwich truck body could be used for Transporting Dry cargo, fresh vegertable, milk, icecream, frozen fish, meat, and so on.
We also support ambitious DIY enthusiasts with cabin construction materials or RV box kits:
|
Standard FRP or aluminum composite panels (10 - 150 mm thick) without cutting, padding or reinforcements. Corner profiles, adhesive and primer will be provided |
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with reinforcements. Corner profiles, adhesive and primer will be provided
|
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with built-in doors, windows, hatches, reinforcements or an integrated frame in the floor panel. Corner |
|
| Windows and doors are available upon request | |
| Notes | Normally truck body are supplied in CKD format to save |
Our Composite Truck Bodies are engineered and constructed with premium materials sourced. Each component
is carefully selected to guarantee a trouble free long life.We deliver flat packed per shipping container to your doorstep.
We offer the following services
| Product |
Core (mm) |
Inside Sheet (mm) |
Outside Sheet (mm) |
Total Thickness (mm) |
Weight (Kg / Sqm) |
| Dry Goods | 25 | 2.4 | 2.4 | 29.8 | 8.46 |
| Dry Goods | 35 | 2.4 | 2.4 | 39.8 | 8.86 |
| Frozen Goods | 45 | 2.4 | 2.4 | 49.8 | 9.26 |
| Frozen Goods | 75 | 2.4 | 2.4 | 79.8 | 10.46 |
| Deep Frozen Goods | 100 | 2.4 | 2.4 | 104.8 | 11.26 |
Application
