Product Details:
|
| Type: | Caravan Body | Size: | Per Custom Spec |
|---|---|---|---|
| Color: | White Is Popular ,Other Color Are Also Available | Material: | FRP Insulated Panel Or Aluminum Composite Panel |
| Adhesive: | Polyuthane Glue | Core: | PU Or XPS Insulation Foam |
| Length: | Upto 12m | Temperature: | -20 To 80℃ |
| High Light: | XPS Foam Composite Panels For Caravans,Fiberglass Composite Panels For Caravans |
||

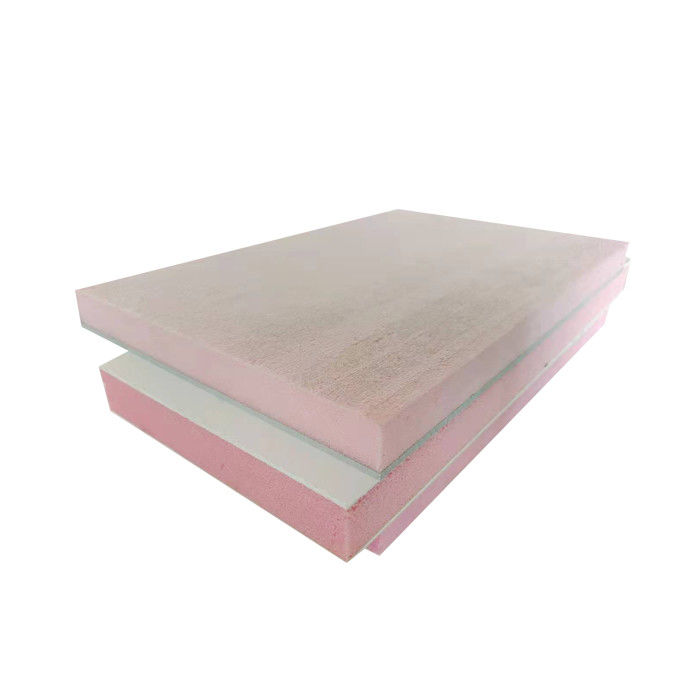

Smooth Glossy Fiberglass XPS Foam Sandwich Panel for RV Body
Foshan WDF specialises in producing high quality composite RV boxes made of PU and XPS foam and FRP or aluminum laminates.
We also support ambitious DIY enthusiasts with cabin construction materials or RV box kits:
|
Standard FRP or aluminum composite panels (10 - 150 mm thick) without cutting, padding or reinforcements. Corner profiles, adhesive and primer will be provided |
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with reinforcements. Corner profiles, adhesive and primer will be provided
|
|
|
Individually planned FRP or aluminum composite panels (10 - 150 mm thick), pre-cut with built-in doors, windows, hatches, reinforcements or an integrated frame in the floor panel. Corner |
|
| Windows and doors are available upon request | |
| Notes | Normally truck body are supplied in CKD format to save |
Our Composite Truck Bodies are engineered and constructed with premium materials sourced. Each component
is carefully selected to guarantee a trouble free long life.We deliver flat packed per shipping container to your doorstep.
We offer the following services
| Product (Body Length) | Core (mm) | Inside Sheet (mm) | Outside Sheet (mm) | Total Thickness (mm) | Weight(Kg / Sqm) |
| Up to 4.2mtr | 25 | 1.5 | 1.5 | 28 | 5.86 |
| 4.3mtr to 8.0mtr | 25 | 1.5 | 2.0 | 28.5 | 6.46 |
| 4.3mtr to 8.0mtr | 25 | 2.0 | 2.0 | 29.0 | 7.06 |
| 8.1mtr to 14.4mtr | 25 | 2.4 | 2.4 | 29.8 | 8.46 |
Application
WDF Factory View
