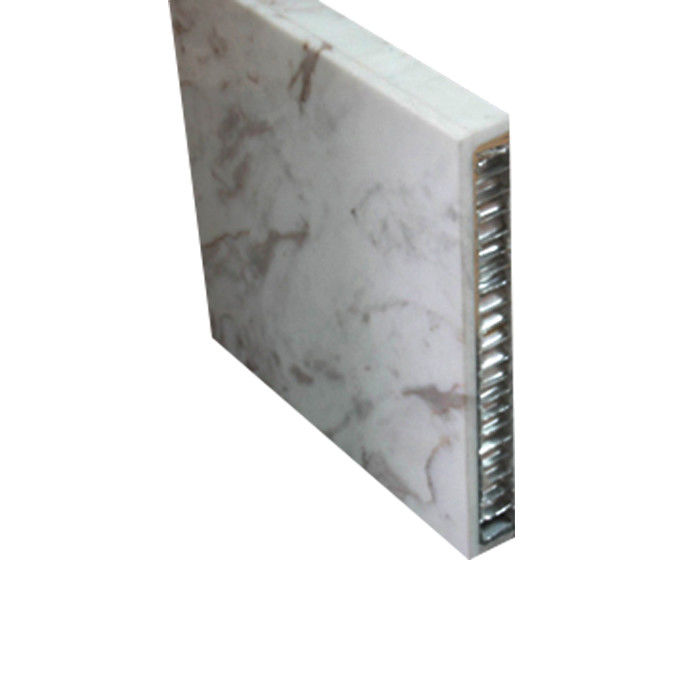

Marble Stone Veneer Aluminum Honeycomb Panel for Wall Decoration
It is a natural stone composite panel comprised of a thin stone veneer and an aluminum honeycomb backing bonded between impervious, high-strength, fiber-reinforced skin. Our Stone Honeycomb panels can be produced from almost any natural stone; including limestone, granite, sandstone, and slate. Our natural stone panels are the perfect choice for exterior, interior, and renovation applications.
Composition:
Top:Stone or Porcelain or Stainless Steel
+ Aluminum or Fiberglass Skin
+ Honeycomb Core
+ Aluminum Backing
stone honeycomb panel
Specifications:
| PRODUCT NAME | Stone honeycomb panel |
| Face material | 3- 6 mm thick natural stone veneer / porcelain sheet |
| Stone veneer Availability | Granite/marble/limestone/travertine/onyx |
| Substrate panels | aluminum honeycomb panels, fiberglass honeycomb composite panels |
| Adhesive | modified astronautic grade epoxy resin (resist -40℃ to 90℃ in long term |
| Max size: | 1500*4000mm |
| Applications |
Countertops and vanity tops Lobby wall and background wall Bathrooms and showers Elevator walls and flooring |
Advantages:
· Lightweight: 1/3 overall weight comparing to dimensional stone
· Rigidity: 60 times stronger on impact strength
· Easy Installation: patented quick-installation systems enable three times faster in installation and passed
Hurricane Wind Loading Test
· Large format: Max. 1500*4000mm one-piece panel
· Sound and heat insulation
· Non-combustible
· Anti-corrosion
· Weather resistance
· Environmentally friendly
Applications:
Countertops and vanity tops
Lobby wall and background wall
Bathrooms and showers
Elevator walls and flooring
Production Procedure
Slab Cutting - Gluing - Aluminum Honeycomb Panel and Stone Sheet Compositing - Vacuum Pressing - Splitting - Thickness Setting - Polishing - Finished.
Natural Stone Types
Stone types include granites, limestone, marbles, and travertine.
Granite: The hardest and most durable of stones. Granite is formed far beneath the earth's surface as molten rock slowly cools and crystalizes.
Limestone: A calcium-based stone that is widely used in architecture. Formed in ancient seas from the calcium precipitate and from the shells and structures of tiny sea creatures that have been compressed and cemented over centuries.
Marble: Used in fine architecture since ancient times, marble was originally formed from limestone that had been compacted and transformed by heat and pressure.
Travertine: The stone of the Roman Colosseum. Recognizable for its pitted surface, travertine is a calcium-rich stone formed in natural springs.
Why choose WDF?
1:We produce honeycomb panel with more than 10 years experience.
We have professional team to offer clients total solution from design to finish, provide customer individual care.
2.Overall control over the whole production process from aluminum coils to finished panels. We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.
3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.
4.Our products are tested , so you can rest assured that our quality is guaranteed.
