Product Details:
|
| Thickness: | 6mm, 10mm, 20mm, 25mm, 30mm Or Customized Made | Width: | Upto 2000mm |
|---|---|---|---|
| Length: | Upto 10000mm | Fire Resistance: | A Grade |
| Coating: | Pre-Painted/Roller Coating, Painting | Surface Treatment: | PVDF, PE/Polyester, Wooden, Brushed, Polished |
| Edge Processing: | Edge Closed Or Edge Open | Texture: | Wood Venner, Stone-Looking, Smooth, Anti-Slip |
| High Light: | Fire Rated Aluminium Honeycomb Panels,Building Facade Aluminium Honeycomb Panels |
||

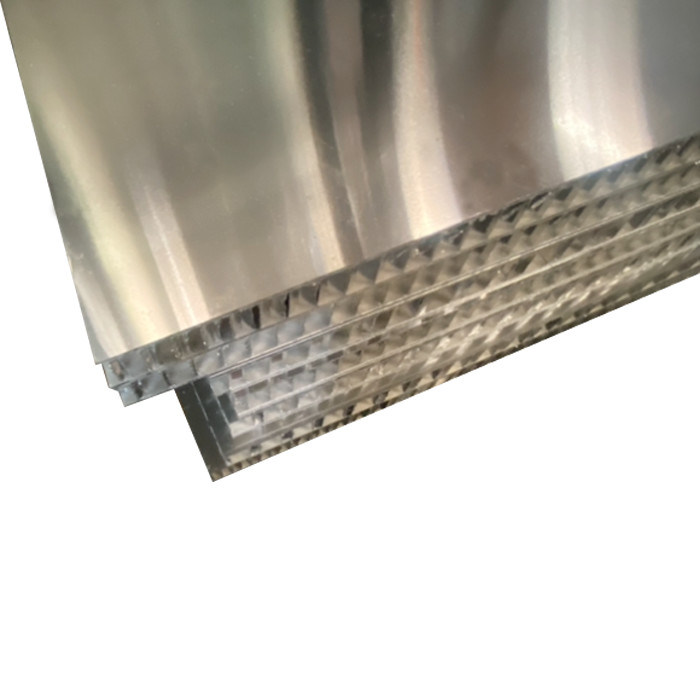

Fire Rated Light Weight Aluminium Sandwich Panel For Facade
As a new type of aluminum composite panel, the aluminum honeycomb panel is made from coated or anodized aluminum sheets
and honeycomb structure aluminum foil core by sandwich lamination, it has much lower weight than traditional aluminium - plastic
composite panel considering the thickness of it is 6mm to 300mm while its weight is only 3.5kg to 15kg per sqaure meter. With high
stiffness and strength as well as good flatness, the aluminium honeycomb panel is very suitable and popular to be used for building
interior and exterior decoration and production of tables, cabinets, partitions and furniture.

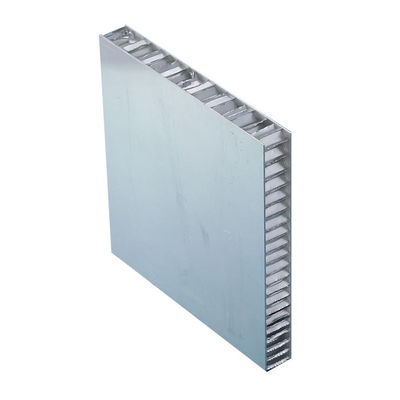

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
At a Glance:
|
RODUCT NAME
|
Aluminum honeycomb panel/metal honeycomb panel/honeycomb sandwich panel
|
|
SKIN MATERIALS
|
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
|
|
THICKNESS
|
3 -200mm
|
|
STANDARD SIZES
|
1250x2500mm, 1500x4800mm
|
|
MAX SIZES
|
1650x12,000mm, 2000x3000mm
|
|
TEMPERATURE RANGE APPLIED
|
-40° to 117°
|
|
FINISH
|
mill finish, RAL colors, wood/stone pattern,anodized, brush,mirror
|
|
STANDARD
|
CN, BS, ASTM
|
|
CAPACITY
|
50K m2/month
|
| Honeycomb core type | Alu3003 or 5002 | |||||
| Total thickness mm | 10 | 12 | 15 | 20 | 25 | |
| Skin thickness mm | Top | 1 | 1 | 1 | 1 | 1 |
| Bottom | 1 | 1 | 1 | 1 | 1 | |
| Core thickness mm | 8 | 10 | 13 | 18 | 23 | |
| Weight kg/m2 | 6.7 | 6.8 | 6.9 | 7.2 | 7.5 | |
| Temperature Resistance | Approximately -40℃ to 80 ℃ | |||||
| Flatness | 1.0mm per meter | |||||
| Skin alloy | AL 3003 | |||||
WDF aluminum honeycomb panels structures deliver:
WDF offers many manufacturing capabilities that can provide a unique sandwich panel solution for your application.
